Status

(Work In Progress)

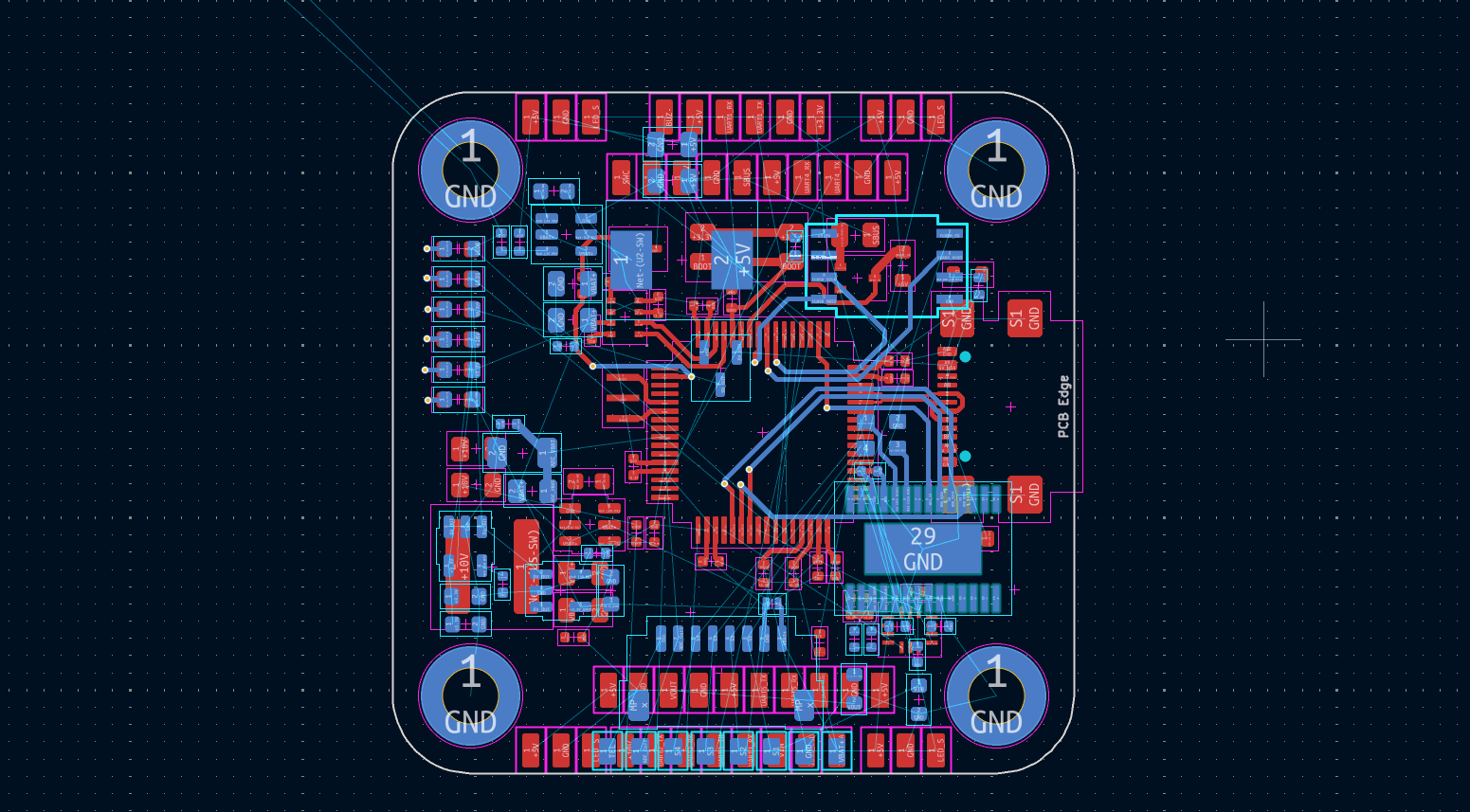

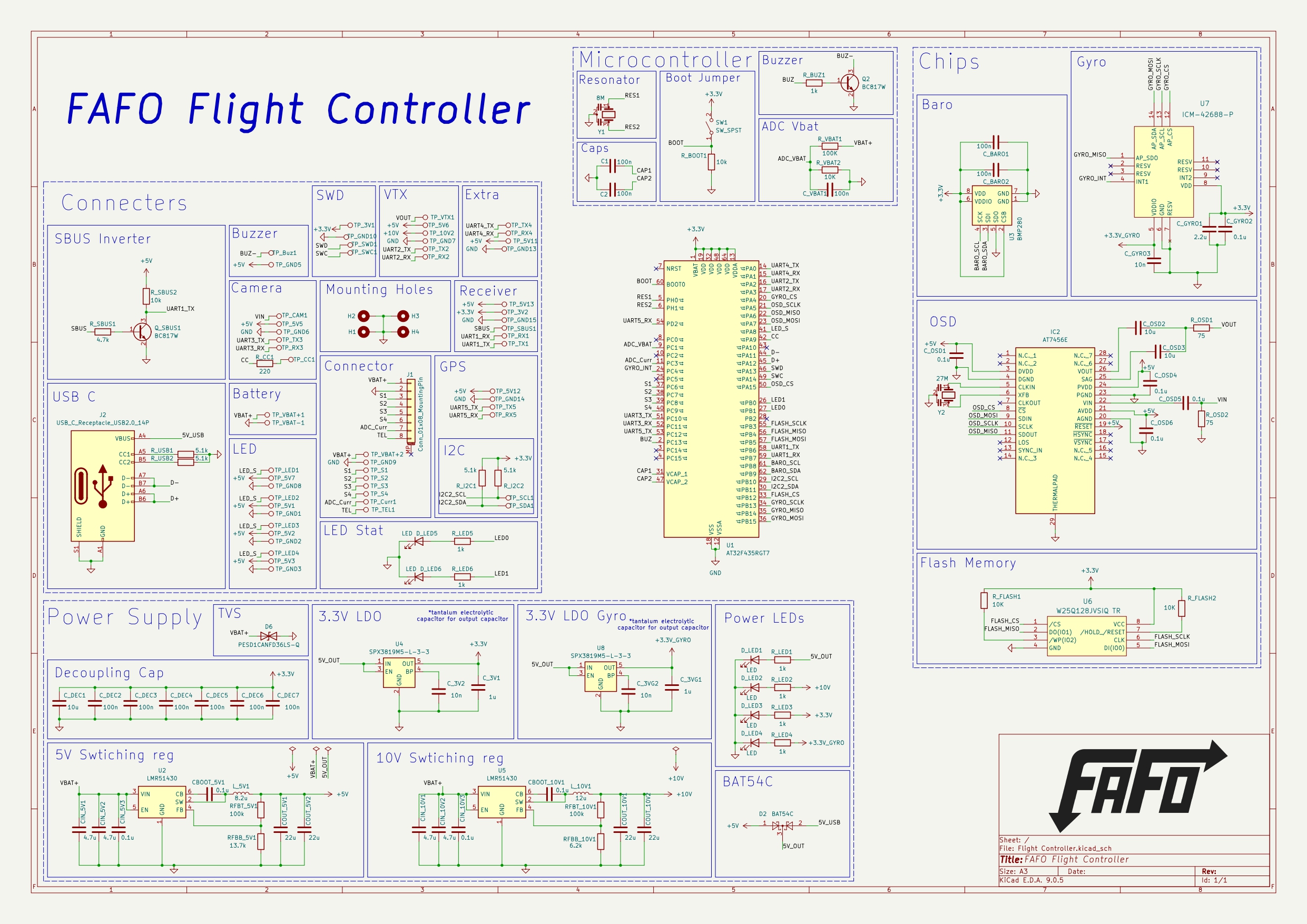

The schematics are done and the layout is almost done and soon I will start prototyping Inshallah. stay tuned!

Specs

• 168MHz STM32F405RGT6
• 5x UARTS serial ports
• I2C1
• 6-Axis ICM-42688-P
• MAX7456 OSD
• BMP280 Barometer
• 1GB BlackBox
• 6 PWM/DSHOT outputs
